| ltems | Standard | |
| Operating temperature range | -20℃~+70℃ | |
|
Electrical performance |
Rating |
Max50 mA12V DC
Min10μA1VDC
|
| Insulation resistance | 100MΩ min | |
| Dielectric strength | 250V AC for 1 min. | |
| Contact resistance | 50mΩ Max. | |
| Durability | Lifetime | 100,000 Cycles |
|
Mechanical performance |
Operating force | 180/250gf |
| Travel | 0.25mm | |
HOW TO ORDER

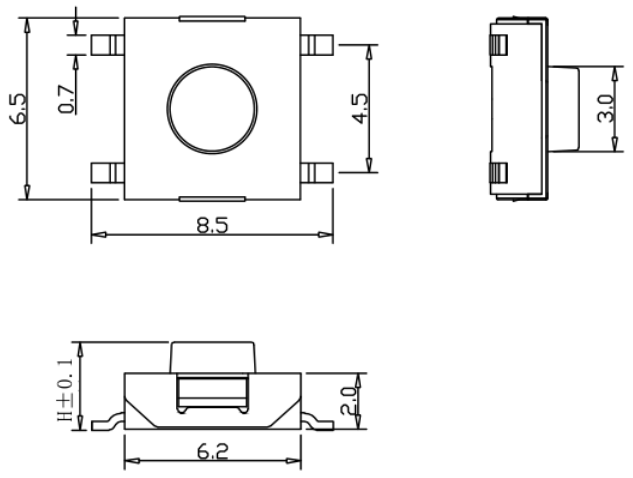

| Proudcts | Dimensions | Circuit Diagram |
| Pad Layout | ||
 |
 |
 |
