ltems | Standard | |
Operating temperature range | -20℃ to +70℃ | |
Electrical performance |
Rating | 50mA.,12V DC |
Insulation resistance | 100MΩ min.100V DC | |
Dielectric strength | 250V AC for 1 min. | |
Contact resistance | 100mΩ max. | |
Durability | Lifetime | A:D:E:J:50,000 Cycles C:G:30,000 Cycles N:100.000Cycles |
Mechanical performance |
Operating force | D:70gf A:90gf E:130gf J:160gf N:180gf C:250gf G:320gf |
Travel | 0.25±0.1mm |

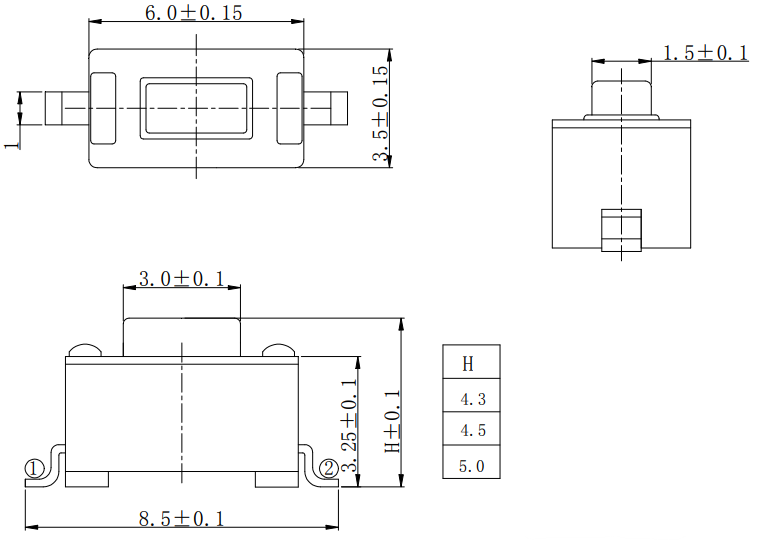

Proudcts | Dimensions | Circuit Diagram |
Pad Layout | ||
![]() |
![]() |
![]() |
