ltems | Standard | |
Operating temperature range | -40℃ to +85℃ | |
Electrical performance |
Rating | 50mA.,15V DC |
Insulation resistance | 100MΩ min.100V DC | |
Dielectric strength | 100V AC for 1 min. | |
Contact resistance | 500mΩ max. | |
Durability | Lifetime | N:600,000 Cycles C:600,000 Cycles |
Mechanical performance |

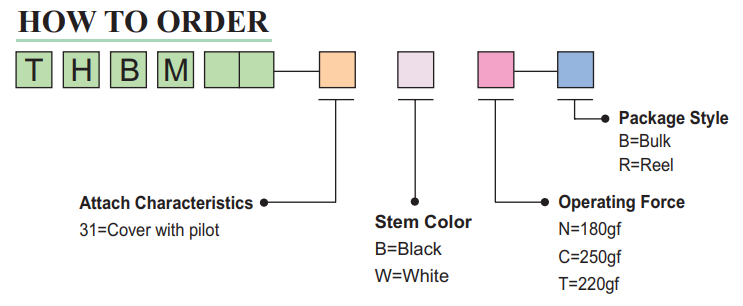

Operating force | N:180gf T:220gf C:250gf |
Travel | 0.15±0.0mm |
Proudcts | Dimensions | Circuit Diagram |
Pad Layout | ||
![]() |
![]() |
![]() |
