ltems | Standard | |
Operating temperature range | -10℃ to +60℃ | |
Electrical performance |
Rating | 10mA 5VDC |
Insulation resistance | 100MΩ min.100V DC | |
Dielectric strength | 100V AC for 1 min. | |
Contact resistance | 500mΩ max. | |
Durability | Lifetime | 50,000 Cycles |
Mechanical performance |
Operating force |
Push portion:200±50gf
Lever position:80±50gf
|
Travel | 0.2±0.1mm |

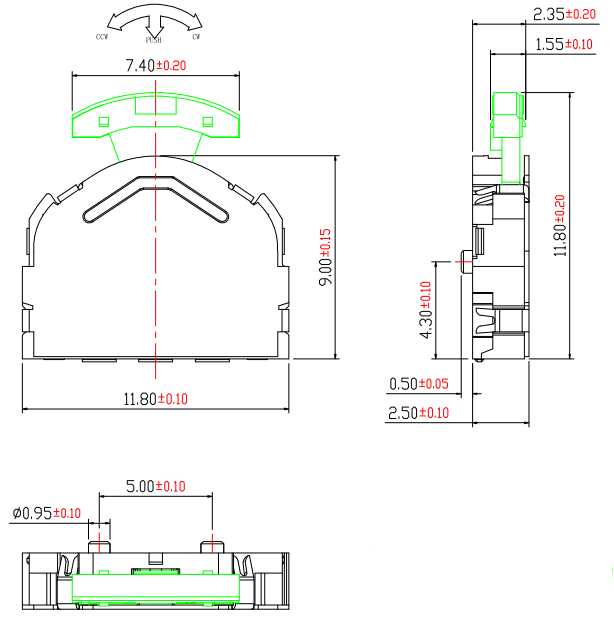

Proudcts | Dimensions | Circuit Diagram |

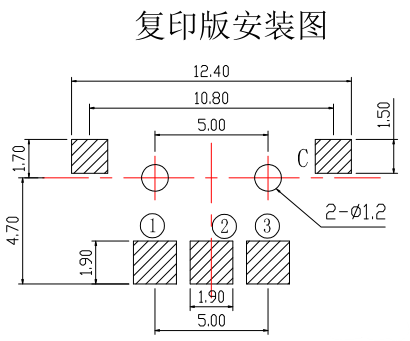

Pad Layout | ||
![]() |
![]() |
![]() |
