ltems | Standard | |
Operating temperature range | -30℃ to +80℃ | |
Electrical performance |
Rating | 50mA.,12V DC |
Insulation resistance | 100MΩ min. | |
Dielectric strength | 250V AC for 1 min. | |
Contact resistance | 50mΩ max. | |
Durability | Lifetime | I:J:N:300,000Cycles C:1000,000 Cycles |
Mechanical performance |
Operating force | I:120gf J:160gf N:180gf C:250gf |
Travel | 0.25±0.05mm |

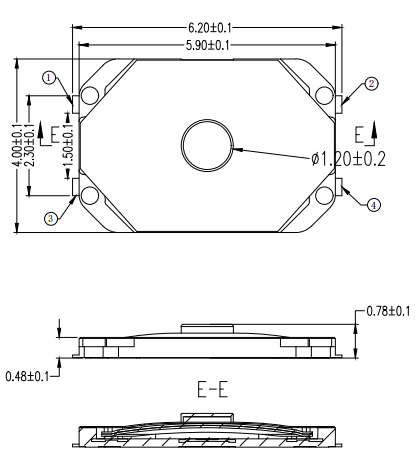

Proudcts | Dimensions | Circuit Diagram |
Pad Layout | ||
|
