ltems | Standard | |
Operating temperature range | -20℃ to +70℃ | |
Electrical performance |
Rating | 50mA.,12V DC |
Insulation resistance | 100MΩ min.100V DC | |
Dielectric strength | 250V AC for 1 min. | |
Contact resistance | 100mΩ max. | |
Durability | Lifetime | C:100,000 Cycles |
Mechanical performance |
Operating force | J:160gf C:250gf |
Travel | 0.2±0.1mm |

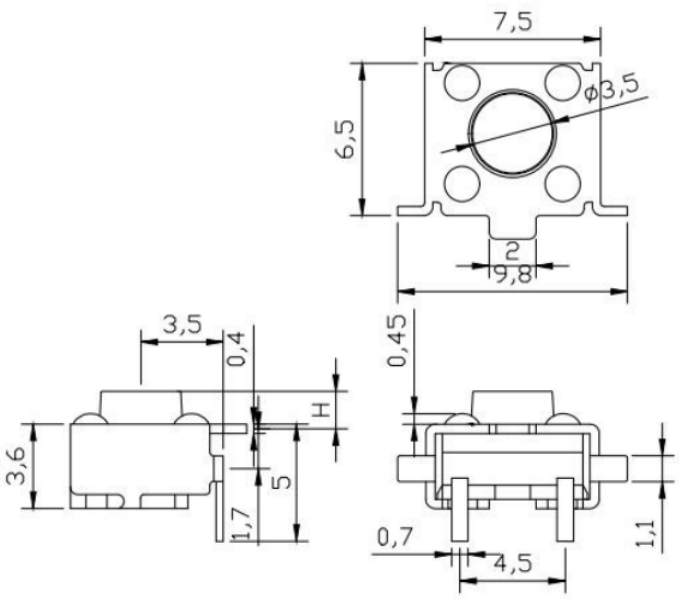

Proudcts | Dimensions | Circuit Diagram |

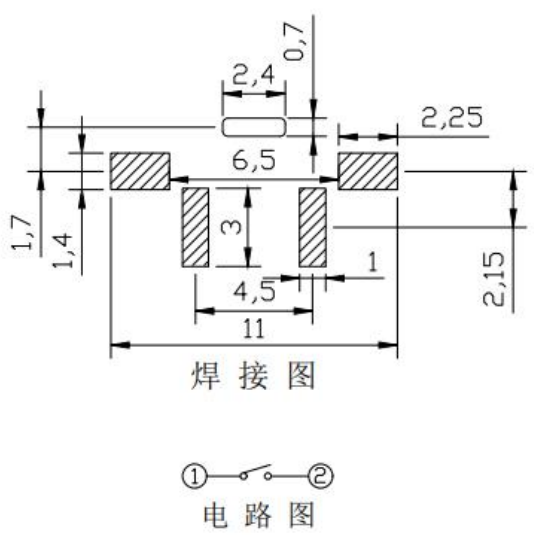

Pad Layout | ||
![]() |
![]() |
![]() |
