| ltems | Standard | |
| Ambient Temper. Used | -40℃ to +85℃ | |
|
Electrical performance |
Rating | 100mA DC30V Max |
| Insulation resistance | 100MΩ min.DC500V | |
| Dielectric strength | AC 500V 1min. | |
| Contact resistance | 50mΩ max. | |
|
Mechanical performance |
Operating force | 240±50gf |
| Durability | Life | 100,000 Cycles |

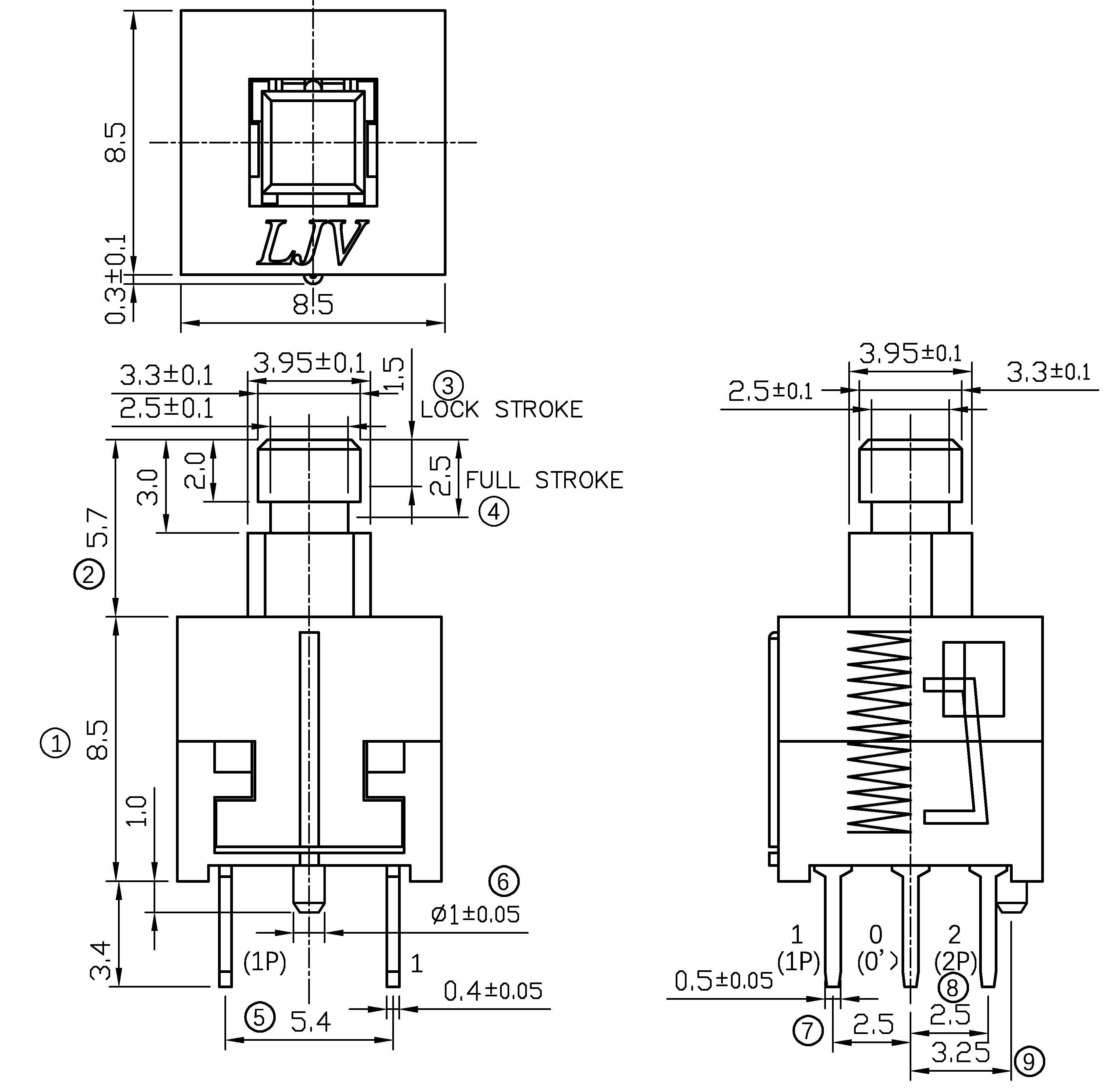

| Proudcts | Dimensions | Circuit Diagram |

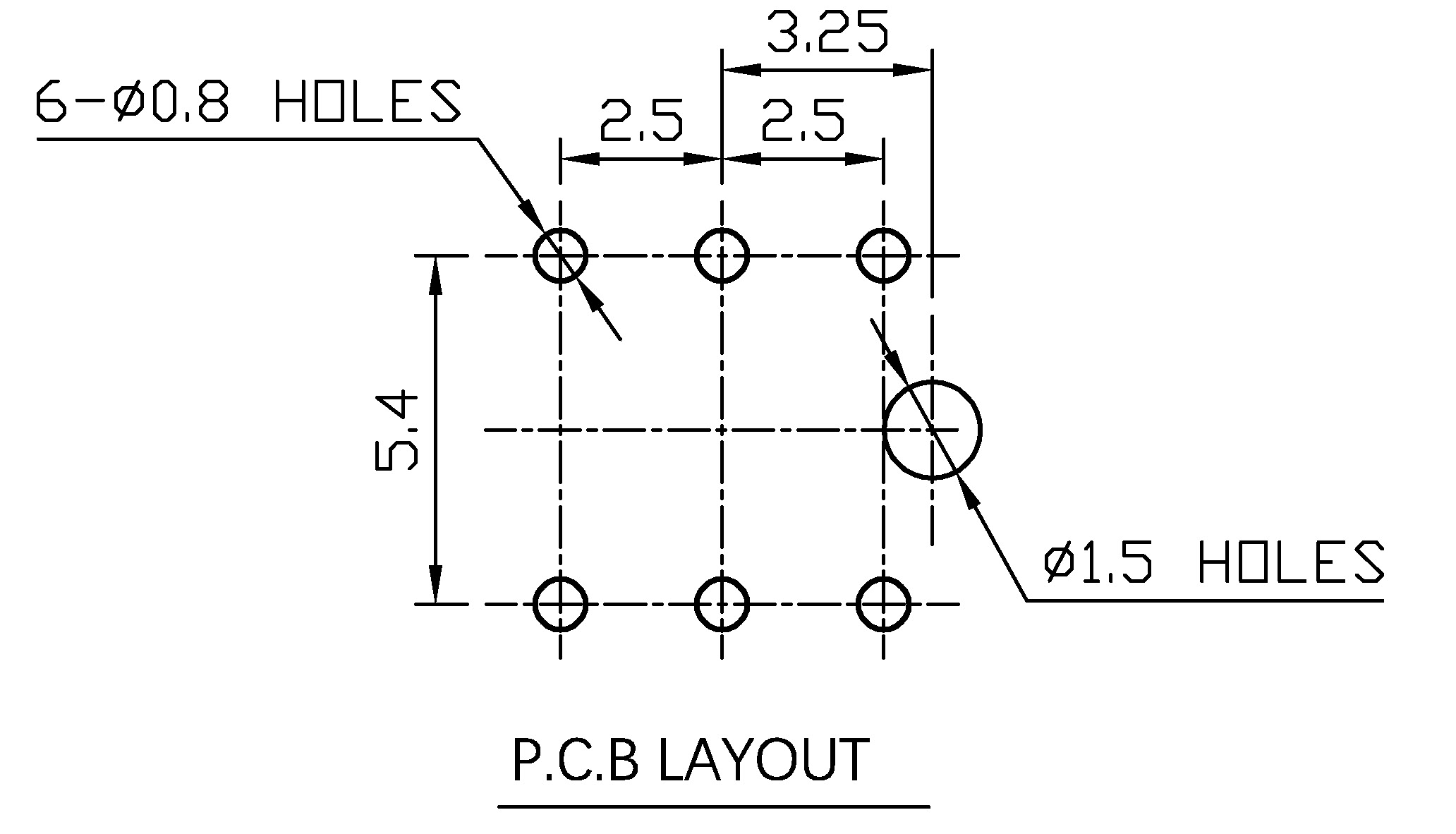

| Pad Layout | ||
 |
 |
 |
