ltems | Standard | |
Operating temperature range | -40℃ to +85℃ | |
Electrical performance |
Rating | 25mA..24V DC |
Insulation resistance | 100MΩ min.500V DC | |
Dielectric strength | 500V AC for 1 min. | |
Contact resistance | 50mΩ Max. | |
Durability | Lifetime | 1,000 Cycles |
Mechanical performance |
Operating force | 300gf MAX |
Travel | 0.8mm |

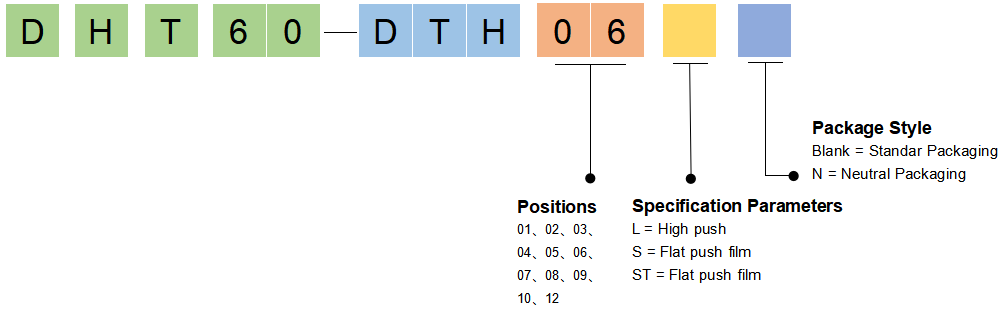

HOW TO ORDER

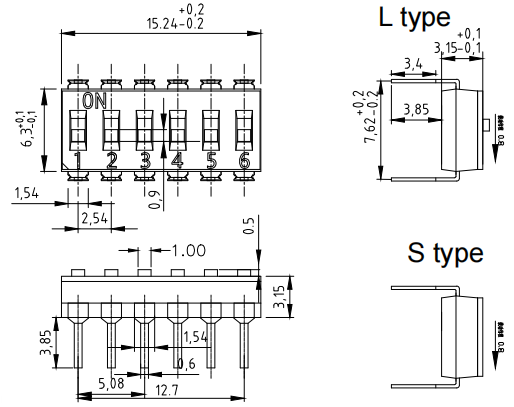

Proudcts | Dimensions | Circuit Diagram |

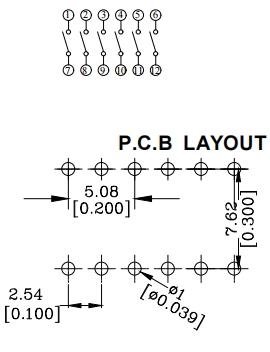

Pad Layout | ||
![]() |
![]() |
![]() |
