ltems | Standard | |
Operating temperature range | -30℃ to +80℃ | |
Electrical performance |
Rating | 0.5mA.,5V DC |
Insulation resistance | 50MΩ Min | |
Dielectric strength | 250V AC | |
Contact resistance | ≤100MΩ | |
Durability | Lifetime | 100,000 Cycles |

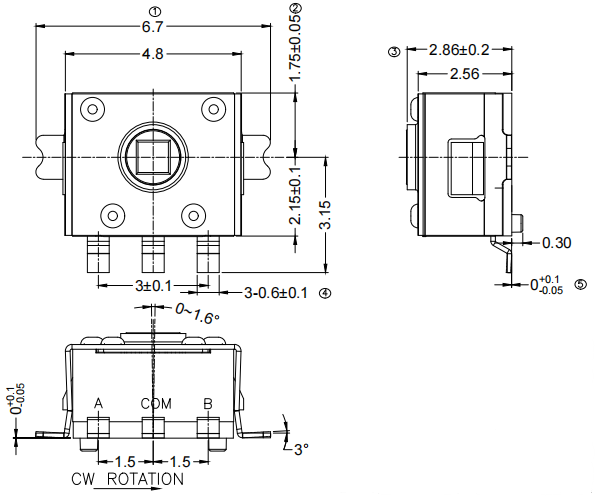

Proudcts | Dimensions | Circuit Diagram |

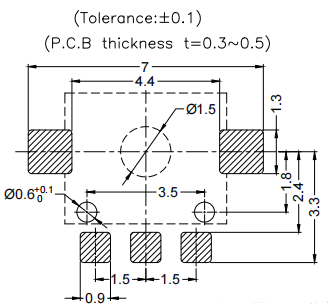

Pad Layout | ||
![]() |
![]() |
![]() |
