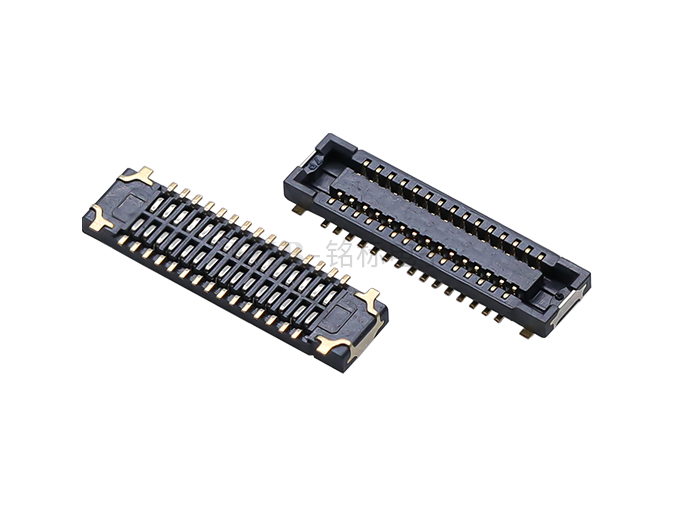

MIB-018F030 8.5*2.9*0.77mm
品牌:铭标科技
型号:MIB-018F030
规格:8.5*2.9*0.77mm
包装:10000pcs
存放温度: -35°C TO 85°C.; 端子,镀金5u"MIN. 镍底50u" MIN. 固定片,镀金5u"MIN. 镍底50u" MIN
* 声明:有关于产品的规格、参数、寿命、工作温度、手感、防水等级等数据,只代表铭标电子内部的测试结果,如需详细测试方式,请联系铭标业务人员。
SPECIFICATONS:
1.VOLTAGE/CURRENT RATING: 30V/0.3A AC;
2.WITHSTANDING VOLTAGE: 100V AC ONE MINUTE;
3.INSULATION RESISTANCE: 50MΩ MIN;
4.CONTACT RESISTANCE: 100mΩ MAX;
5.OPERATING TEMPERATURE RANGE: -35°C TO 85°C.
MATERIAL:
1.INSULATOR: LCP UL 94V-0 BLACK;
2.TERMINAL: COPPER ALLOY;
3.METAL FITTINGS: COPPER ALLOY.
PLATING:
1.TERMINAL: GOLD PLATING,
NICKEL 50u" MIN. OVER ALL;
2.METAL FITTINGS: TIN 100u" MIN. OVER NICKEL 50u"MIN.
Proudcts |

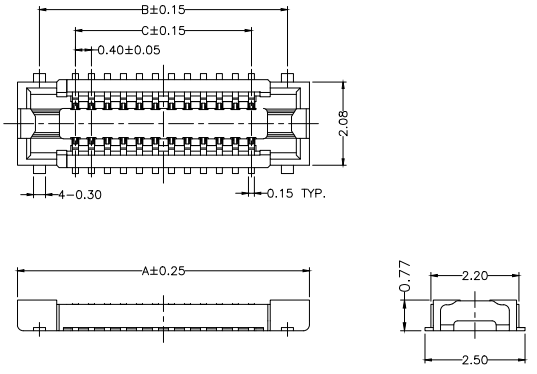

Dimensions |
Circuit Diagram |

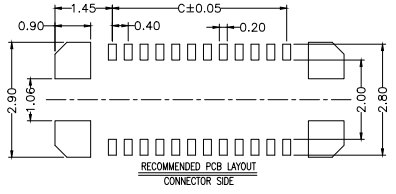

Pad Layout |
|
![](/uploads/240306/1-24030610221D91.png) |
![](/uploads/240306/1-240306102226243.png)
|
