MIB-020M048 9.9*2.4*0.65mm
品牌：铭标科技
型号：MIB-020M048
规格：9.9*2.4*0.65mm
包装：10000pcs
毛边最大0.03mm，厚0.05mm;端子接地片共面度在0.05mm以内,正位度0.02mm以内;
* 声明：有关于产品的规格、参数、寿命、工作温度、手感、防水等级等数据，只代表铭标电子内部的测试结果，如需详细测试方式，请联系铭标业务人员。
SPECIFICATONS:
1. Plastic material: LCP UL 94V-0 BLACK;
2. 0.03mm thick, 0.05mm thick;
3. The product should not have obvious shrinkage, burning, white, rubber, terminal glue and other problems;
4. Parts must meet RoHS requirements;
5. ▼ symbol QIP control size;
6. Die number (A, B, C...... );
7. 10 KPCS / disk;
8. No geometric center position of the product;
9. The joint level of terminal ground plate within 0.05mm, positive degree within 0.02mm;
10. Fine glue inlet at the bottom;
|

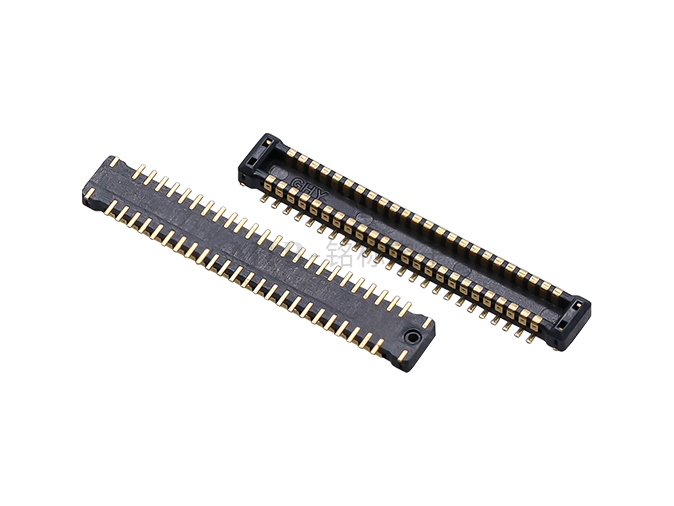

Proudcts |

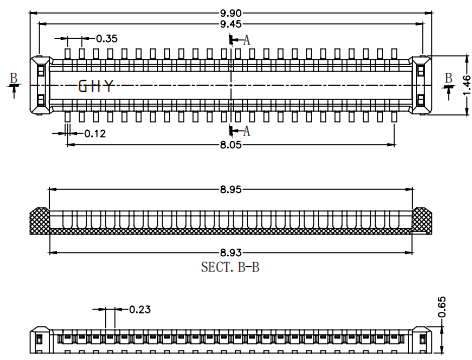

Dimensions |
Circuit Diagram |
|

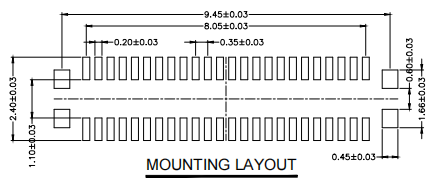

Pad Layout |
|
|
 |
|
