| ltems | Standard | |
| Operating temperature range | ﹣20℃~+70℃. | |
|
Electrical performance |
Rating | 0.3A.50V DC |
| Insulation resistance | ＞100MΩ | |
| Dielectric strength | 250V 50HZ 1min | |
| Contact resistance | ≤50mΩ | |
| Durability | Lifetime | 10,000 Cycles |
|
Mechanical performance |
Operating force |
300±100gf |

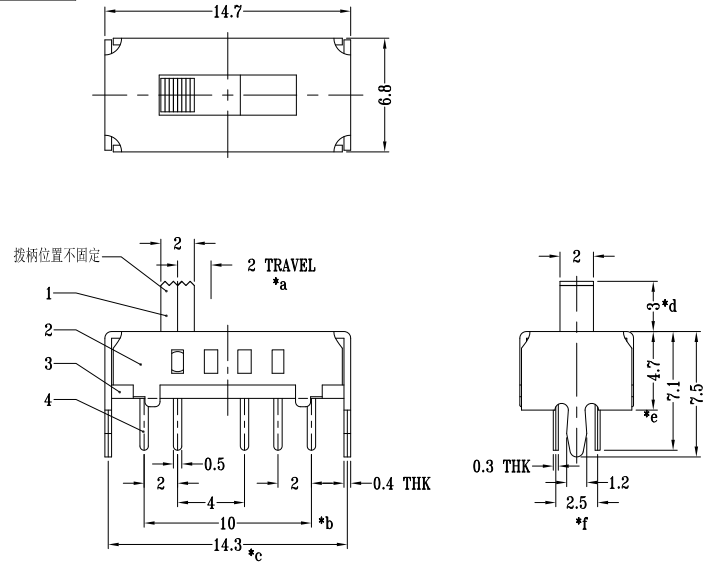

| Proudcts | Dimensions | Circuit Diagram |

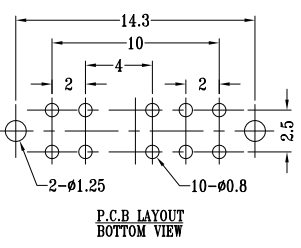

| Pad Layout | ||
 |
 |
 |
